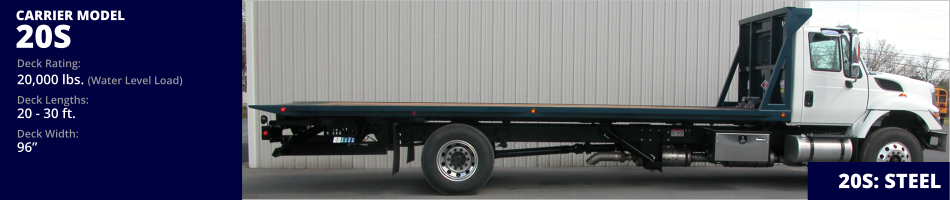

INDUSTRIAL 20S

DECK

Length

20 ft
22 ft
24 ft
26 ft
28 ft
30 ft

6.10 m
6.71 m
7.32 m
7.92 m
8.53 m
9.14 m

Deck Capacity

20,000 lb

9,071.84 kg

(Water Level Load)

Deck Width
Decking
Winch
Cable Length
Cable Dia.

96 in
3/16 in
12,000 lb
50 ft
7/16 in

243.84 cm
0.48 cm
5,443.10 kg
15.24 m
1.11 cm

Deck Surface: Diamond Plate
Tie Downs:
4 Front • 4 Rear
Stake Pockets: Full Length
Finish: Painted Black Acrylic Enamel

DECK
  • 3/16 in (0.48 cm) Steel Diamond Plate
  • Non-Removable Deck Rails
  • Standard Paint Color (Black)
  • 2 in. Square Tubing on 8 in. Centers
  • Stake Pockets Full Length
  • Heavy Duty Tapered Approach Plate
  • Tie Down Key Slots- 4 Front, 4 Rear
  • Deck Chain Trays
  • Full Height Steel Cab Protector
  • 12,00 lbs. Planetary Winch
  • 50 ft. of 7/16 in. Winch Cable
  • Anti-Tilt Deck Feature
SUBFRAME
  • Tubular Subframe
  • Painted Black Acrylic Enamel
  • Right & Left Illuminated Control Stations
  • Dual Counterbalance Valve
  • High Performance Slide Pads
  • Mud Flaps
ELECTRICAL
  • Federal Standard #108 Lighting
  • LED Light Package
  • Three Pair of Side Marker Deck Lights
  • Weather Resistant Electrical System
  • Deck & Subframe Junction Boxes
  • Back-Up Lights & Alarm
HYDRAULICS
  • Hydraulic Oil Reservoir
  • 10 Micron Oil Filter with Cartridge
  • Plastic Track System for Hoses and Wires
  • Extra Length Push-Off Cylinder
  • Two Power Lift Cylinders
  • Chrome Plated Cylinder Rods

GENERAL

  • Adjustable Deck Hold Downs
  • Deck Slide Bar
  • Lubrication Fitting at Pivot Points
  • Installation Components
DECK LENGTH

20 ft
22 ft
24 ft
26 ft
28 ft
30 ft

6.10 m
6.71 m
7.32 m
7.92 m
8.53 m
9.14 m

CAB TO AXLE (CLEAR)

120 - 126 in
144 - 150 in
168 - 174 in
192 - 198 in
216 - 222 in
240 - 246 in

304.80 - 320.04 cm
365.76 - 381.00 cm
426.72 - 441.96 cm
487.68 - 502.92 cm
548.64 - 563.88  cm
609.60 - 624.84  cm

CAB TO TANDEM (CLEAR)

Not Available
114 - 120 in
138 - 144 in
162 - 168 in
186 - 192 in
210 -216 in

Not Available
289.56 - 304.80 cm
350.52 - 365.76 cm
411.48 - 426.72 cm
472.44 - 487.68 cm
533.40 - 548.64 cm

CHASSIS SPECS

Minimum GVWR
Single Rear Axle
Tandem Rear Axle
Min. Frame RBM (each rail)
Min Frame Height
Maximum Frame Height


31,000 lb
50,000 lb
1,800,000 in-lb
38 in
46 in


14,061.35 kg
22,679.60 kg

96.52 cm
116.84 cm

OPTIONS
  • PTO & Pump Options
  • 102" (259.08 cm) Deck Width
  • Deck Tie Down Key Slots
  • Smooth Decking
  • Rumber Decking
  • Hard Wood Decking
  • Steel Diamond Plate Over Wood
  • Smooth Steel Over Wood
  • Deck Tie Down Key Slots
  • Removable Deck Rails
  • Anti-Skid Deck Surface
  • Full Height Bolt-On Cab Protector
  • Aluminum Bolt-On Cab Protector
  • Enclosed Cab Protector at Bottom
  • Frame-Mounted Cab Protector
  • Screen in Cab Protector
  • Air Shift Winch Free Spool
  • 20,000 lbs. Planetary Winch
  • Marker Light Package in Cab Protector
  • Industrial Weld-On Cab Protector
  • Additional Side Marker Lights
  • Chrome Bezel Marker Lights
  • Light Bar (10 Head LED)
  • Customer-Supplied Light Bar
  • Additional Work Lights
  • Planetary Winch in Lieu of Worm Gear Winch
  • Magnetic Tow Lights
  • Light Bar Switch Panel
  • Wireless Winch Remote
  • Various Tool Box Options
  • LED Work Light
  • Dual Propane Tank Holders with Chain Rack
  • D-Rings
  • Forklift Guard (Heavy Duty Bumper)
  • Folding Deck Ladder
  • Locking Chain Bars
  • Rub Rail w/ Stake Pockets
  • Adjustable Swinging Ag-Hitch
  • Hydraulic Stabilizer Bar
  • Multiple Hitch Options
  • Wheel Simulators
  • Hub Covers for Aluminum Alcoas
  • Stainless Steel Quarter Fenders
  • V-Chain with Cluster Hooks
  • Safety Chains with Cluster Hooks
  • Four Point Tie Down System
  • Wheel Lift Strap System
  • Ford & Dodge Axle Frame Caps
  • Factory Installation
DOWNLOADS
20S - Literature


Looking for an Operator Manual? Please contact Sales or Parts & Service for your Operator Manual.
Manuals are available for operator/owners and are not available for download.
**Adobe Reader or another PDF program needed to view downloads.
20S GALLERY (Click to enlarge)

IMPORTANT: Gross vehicle rating limitation must be considered. Ratings are based on structural factors only, not chassis capacity. Danco's body ratings are based on a water level capacity. Danco specifications shown are approximations and may vary depending on chassis selected. Prices and product specifications are subject to change without notice. Consult with state and local laws for the maximum vehicle lengths allowed. Optional equipment may be shown in photographs and may not be part of the standard package. Optional upgrade prices not included in standard pricing. See dancoproducts.com for a more complete list of specifications. * Optional upgrade prices not included in standard pricing. All prices are installed, Freight on Board Greencastle, PA

FEATURES

Wheel Grid Lift Arm Storage & 2' Ball_Mount Plate

Rear Hydraulic Stabilizer

CLICK IMAGE TO ENLARGE
Frame Mounted Cab Protector

Flat Bar Rub Rail

CLICK  IMAGE TO ENLARGE

Folding Step Ladder

CLICK IMAGE TO ENLARGE

Toolboxes

CLICK IMAGE TO ENLARGE
