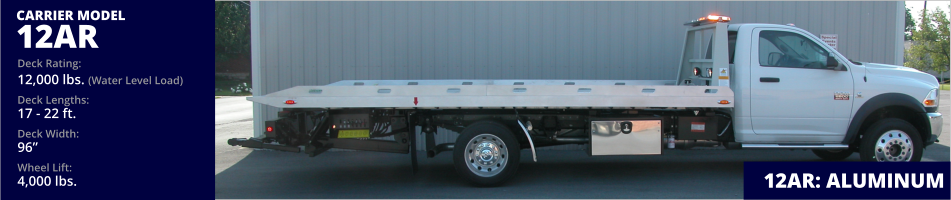

DECK
17 ft
18 ft
19 ft
20 ft
21 ft
22 ft
5.18 m
5.49 m
5.79 m
6.10 m
6.40 m
6.71 m
(Water Level Load)
Deck Width
Winch
Cable Length
Cable Dia.
243.84 cm
3,628.74 kg
15.24 m
0.95 cm
Deck Surface: Extruded Aluminum
Tie Downs: 4 Front • 2 Middle • 4 Rear
Rails: Aluminum Removable Blade Rails
Deck Finish: Non-Polished
Subframe Finish: Painted Black Acrylic Enamel
WHEEL LIFT
Lift Capacity
Tow Capacity
DECK
- Extruded Aluminum Deck
- Non-Polished Aluminum Finish
- Removable Blade Deck Rails
- Heavy Duty Approach Plate
- Tie Down Key Slots- 4 Front, 4 Middle, 4 Rear
- Right & Left Deck Chain Trays
- 8,000 lb (3,628.74 kg) Ramsey Winch
- 50 ft (15.24 m) Winch Cable
- Cable Tensioner
- Manual Shift Winch Free Spool Lever
- Anti-Tilt Deck Feature
WHEEL LIFT
- 4,000 lb (1,814.37 kg) Wheel Lift
- Counterbalance Valve
- Wheel Grids
- Adjustable Lift Arms
- Slide-Behind Tire Bars
- Strap Hooks
- Ball Mount Plate
SUBFRAME
- Tubular Subframe
- Painted Black Acrylic Enamel
- Right & Left Illuminated Control Stations
- Dual Counterbalance Valve
- High Performance Slide Pads
- Rear Safety Chain Storage Pockets
- Lift Arm Storage Brackets
- Mud Flaps
ELECTRICAL
- Federal Standard #108 Lighting
- LED Light Package
- Weather Resistant Electrical System
- Deck & Subframe Junction Boxes
- Light Bar Wiring Package
- Two Pair of LED Work Lights
- Three Pair of Side Marker Deck Lights
- Receptacle for Tow Lights
- Back-Up Lights & Alarm
HYDRAULICS
- Hydraulic Oil Reservoir
- 10 Micron Oil Filter with Cartridge
- Plastic Track System for Hoses and Wires
- Extra Length Push-Off Cylinder
- Two Power Lift Cylinders
- Chrome Plated Cylinder Rods
GENERAL
- Adjustable Deck Hold Downs
- Slide Bar on Decks Greater 20 ft (6.10 m)
- Lubrication Fitting at Pivot Points
- Installation Components
DECK LENGTH
17 ft
18 ft
19 ft
20 ft
21 ft
22 ft
5.18 m
5.49 m
5.79 m
6.10 m
6.40 m
6.71 m
CAB TO AXLE (CLEAR)
108 in
108 in
114 - 120 in
120 - 132 in
138 - 144 in
150 - 156 in
274.32 cm
274.32 cm
289.56 - 304.80 cm
350.52 - 365.76 cm
381.00 - 396.24 cm
CHASSIS SPECS.
GVWR without Wheel Lift
GVWR with Wheel Lift
Minimum GVWR
Rear
Maximum GVWR
Min. Frame RBM (each rail)
Min Frame Height
Maximum Frame Height
Wheel/Tire Size
19,500 lb
13,500 lb
26,000 lb
500,000 in-lb
29 in
38 in
245/70R19.5"
255/70R22.5"
8,845.04 kg
6,123.49 kg
11,793.39 kg
73.66 cm
96.52 cm
*Minimum load angle achieved on air-ride chassis with airbags deflated.
OPTIONAL EQUIPMENT
- PTO & Pump Options
- 102" (259.08 cm) Deck Width
- Additional Tie Down Key Slots
- Polished Aluminum Deck Rails
- Full Height Bolt-On Cab Protector
- Aluminum Bolt-On Cab Protector
- Enclosed Cab Protector at Bottom
- Frame-Mounted Cab Protector
- Side-Winding Cab Protector
- Marker Light Package in Cab Protector
- Additional Side Marker Lights
- Full Height Aluminum Cab Protector Upgrade
- Enclosed Cab Protector at Bottom
- Marker Light Package in Cab Protector
- Additional Side Marker Lights
- Chrome Bezel Marker Lights
- Light Bar (10 Head LED)
- Customer-Supplied Light Bar
- Additional Work Lights
- Planetary Winch in Lieu of Worm Gear Winch
- Magnetic Tow Lights
- Light Bar Switch Panel
- Cable Roller Guide
- Wireless Winch Remote
- Various Tool Box Options
- Locking Chain Bars
- Wheel Simulators
- Hub Covers for Aluminum Alcoas
- Stainless Steel Quarter Fenders
- V-Chain with Cluster Hooks
- Safety Chains with Cluster Hooks
- Four Point Tie Down System
- Wheel Lift Strap System
- Ford & Dodge Axle Frame Caps
- Factory Installation
DOWNLOADS*
12AR - Literature
Looking for an Operator Manual? Please contact Sales or Parts & Service for your Operator Manual.
Manuals are available for operator/owners and are not available for download.
*Adobe Reader or another PDF program needed to view downloads.
12-SERIES ALUMINUM GALLERY (Click to enlarge)
Some optional equipment may be shown in photographs.
