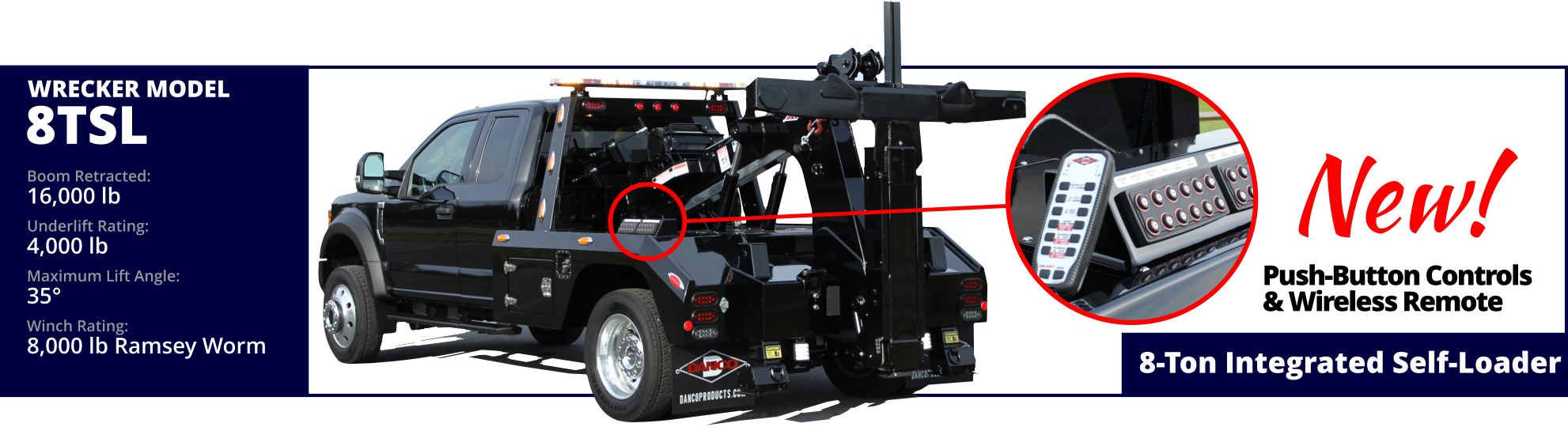

WRECKER: 8TSL

RECOVERY BOOM

Retracted
Extended
Range of Elevation

16,000 lb
8,000 lb
35 degree

7,257.47 kg
3,628.74 kg

Lift Height From Ground to Hook at Maximum Elevation

Retracted
Extended

105-7/8 in
134-1/2 in

268.92 cm
341.63 cm

Reach Past Tail-Board Minimum Elevation

Extended

58-3/4 in

149.23 cm

Reach Past Tail-Board Maximum Elevation

Extended

30-1/2 in

77.47 cm

WINCH & CABLES

Winch Rating: 1st Layer of Each Drum/Winch

8,000 lb

3,628.74 kg

Cable Diameter & Length Each Drum

Diameter
Length

3/8 in
100 ft

0.95 cm
30.48 m

UNDERLIFT

Wheel Lift Rating

Extended

4,000 lb

1,814.37 kg

Range of Tilt

Up
Down

71 degree
22 degree

Distance From Bumper to Center Line of Lift Arm

Retracted
Extended

51 in
80-5/8 in

129.54 cm
204.79 cm

Tow Hitch Rating

7,500 lb

3,401.94 kg

INTEGRATED BOOM & UNDER LIFT

Integrated Boom and Underlift System
Dual Boom Elevation Cylinders
360 degree Boom End Swivel
Winch Cable Tie Backs
Self-Loading Wheel Lift System
Self-Centering Crossbar
Lanyard Wheel Lift & Winch Control
Trailer Hitch Adapter

WINCHES & CABLES

(2) 8,000 lb (3,628.74 kg) Worm Winches
Cable Tensioners
Manual Shift Winch Free Spool Lever
100 ft (30.48 m) Winch Cable

SUBFRAME

60 in (152.40 cm) Cab to Axle Sub-Frame
Right & Left Electronic Controls
Dual Rear Hydraulic Stiff Legs
Adjustable Stiff Leg Feet
Low Mount D-Rings
(2) Rear Chain Anchors
(2) Tailboard Chain Storage Compartments
Rear Lift Arm Storage Pockets

ALUMINUM MODULAR BODY

60 in (152.40 cm) Modular Aluminum Body
Body Width 96 in (243.84 cm)
Right & Left Tool Compartments
Rear Enclosed Wheel Wells
Contour Fender Design
Rotary T-Handle Style Latches
Chrome Finished Flush Mount Hinges
Full Height Aluminum Enclosed Pylon
Mud Flaps

HYDRAULICS

Hydraulic Oil Reservoir
10 Micron Oil Filter with Cartridge
Chrome Plated Cylinder Rods
Counterbalance Valves

ELECTRICAL

Federal Standard #108 Lighting
LED Light Package
LED Marker Light Package in Body & Pylon
Weather Resistant Electrical System
Junction Box & Wiring Harness
Tool Box Lighting
(1) Pair Low Mount LED Work Lights
Back-Up Lights & Alarm
Receptacle for Tow Lights

GENERAL

Lubrication Fitting at Pivot Points
Installation Components

CHASSIS SPECS

Minimum GVWR
Maximum GVWR

15,000 lb
26,000 lb

6,803.88 kg
11,793.39 kg

Minimum Cab To Axle
24 in (60.96 cm) Tunnel Box
Maximum Frame Height

60 in
84 in
38 in

152.40 cm
213.36 cm
96.52 cm

OPTIONAL EQUIPMENT

Clutch Pump or PTO/Pump Options
Planetary Winches
Winch Free Spool Air Shift
Aluminum Tunnel Tool Box
Light Bar (10 Head LED)
Customer Supplied Light Bar
Additional Work Lights

LED Light Package in Pylon
Rear View Video Camera
Light Bar Switch Panel
Magnetic Tow Lights
Fold Down Light Bar Bracket
Front Push Bumper with Grill Guard
Wheel Simulators
Factory Paint

Safety Chains with Cluster Hooks
Wheel Lift Strap System
Tow Dollies and Brackets
Fire Extinguisher
Safety Triangle Kit
Flares
Factory Installation
